BLACKBURNS X-TRUDE COMPONENT & ASSEMBLY GUIDE
7

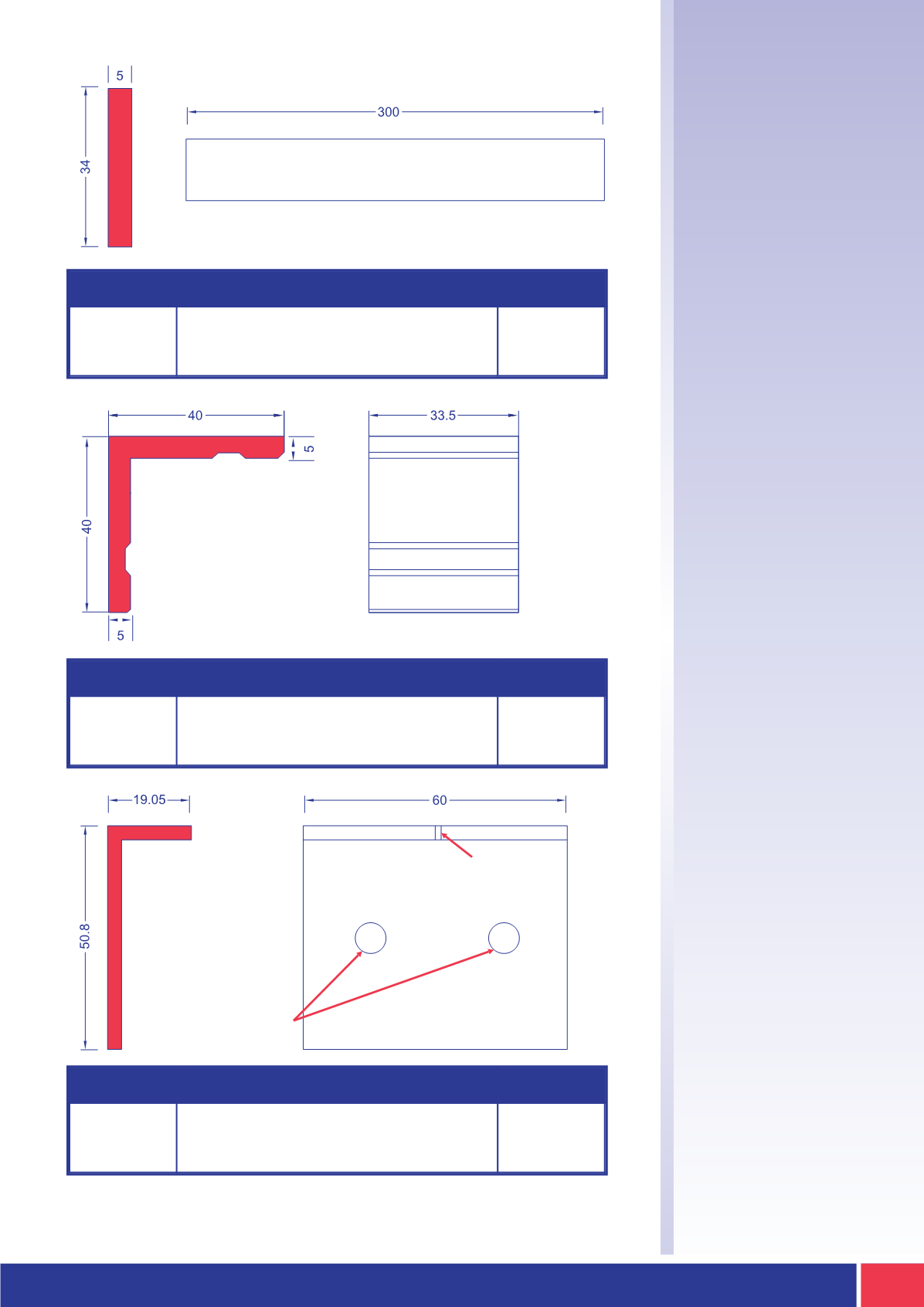

3) BXF-50JS
Pre-cut 5mm aluminium
flat bar which is used as a
join strip between frame
sections (if required)
All are pushed into place
then drilled and riveted
4) BXF-C150
Pre-cut 5mm aluminium
extruded corner cleats
used to mechanically fix
the mitred frame
5) BXF-SFB
Pre-cut and drilled
aluminium fixing brackets
required for illuminated
wall mounted fascia panels
This bracket is universal
across the entire range
7mm holes evenly
spaced across the
centre of the
bracket used for
mounting back
to a suitable fixing
background
2mm pilot hole central
in the top return
UNIT TYPE
BOX OF 50
MILL FINISH
BOX
n
n
UNIT TYPE
BOX OF 50
MILL FINISH
BOX
n
n
UNIT TYPE
BOX OF 50
MILL FINISH
BOX
n
n
