BLACKBURNS X-TRUDE COMPONENT & ASSEMBLY GUIDE
15

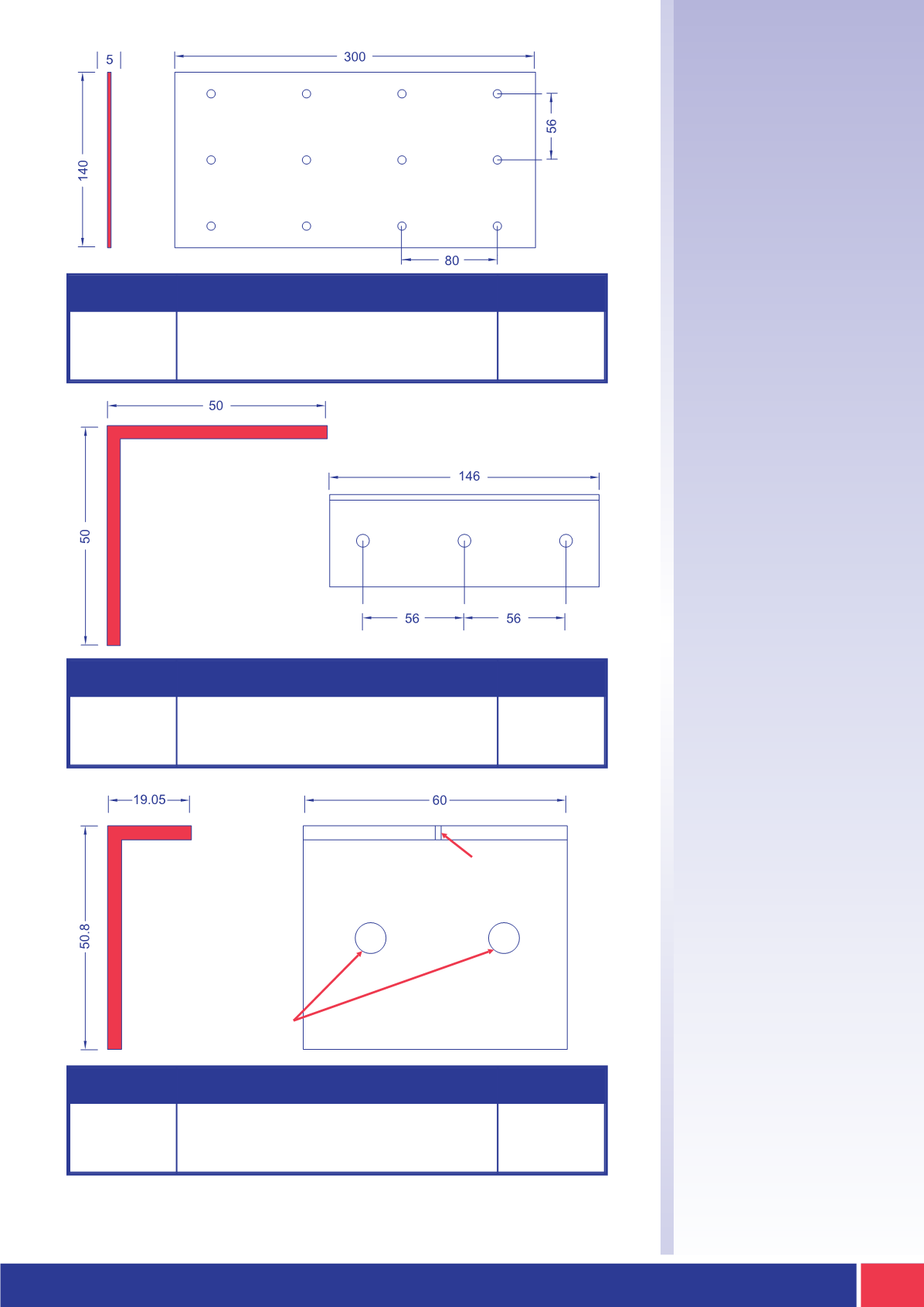

3) BXF-200JS
Pre-cut 5mm aluminium
flat bar which is used as a
join strip between frame
sections (if required)
All are pushed into place
then drilled and riveted
4) BXF-200C
Pre-cut and drilled 3mm
aluminium angle corner
cleats used to mechanically
fix the mitred frame
Brackets designed to
accommodate an M6 Bolt
5) BXF-SFB
Pre-cut and drilled
aluminium fixing brackets
required for illuminated
wall mounted fascia panels
This bracket is universal
across the entire range
7mm holes evenly
spaced across the
centre of the
bracket used for
mounting back
to a suitable fixing
background
2mm pilot hole central
in the top return
3 centrally aligned
7mm holes to
accommodate
M6 bolts
UNIT TYPE
BOX OF 50
MILL FINISH
BOX
n
n
UNIT TYPE
BOX OF 50
MILL FINISH
BOX
n
n
UNIT TYPE
BOX OF 25
MILL FINISH
BOX
n
n
