31
Code
Description

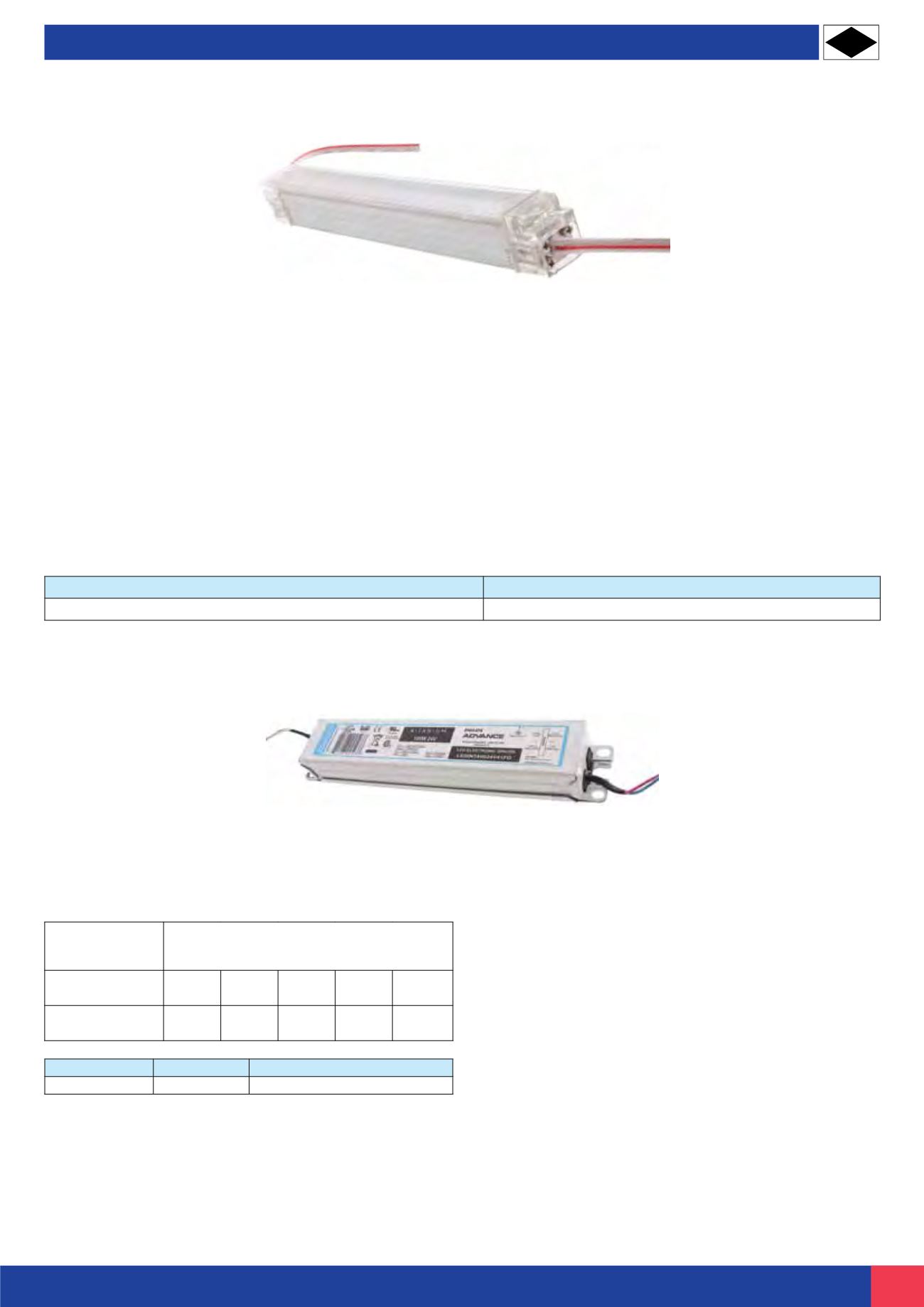

1809001
LED Light Stick with Transparent Lens
Code
Type
Description
1809006
24V/100W Suitable for 10 LED Light Sticks
Transparent Lens
LED Driver
LED Specification
• 5400K colour temperature
• Selected high brightness LEDs
• Lens angle is 65
°
• Brightness of transparent lens: 109.3/300mm
• Aluminium housing
• 1067mm Long
• IP66 Listing
• Approximately 21° C (70° F) ambient temperature
LED Driver Specification
• 240 (L) x 45 (W) x 30mm (H)
• IP66 classification
• -30° to +60° C temperature
• 1% line, 5% load regulated output
• 240V voltage
• 90% minimum power factor
• Total harmonic distortion is 20% maximum
• 1.5 max current crest factor
• 3 drivers may be daisy chained together for longer runs
• Up to 10m of lights may be powered off each
individual driver
Electrical Specification For LED Light Stick
• 24VDC, 100W Power requirement
• Power consumption is 2W per 300mm
• Class 2 - 24VDC power supply
• Use an approved means of connection
• -20° to +50° C operating temperature
• 50,000 Hours (approximately) of LED life
• NEMA 3R rating
• Power supply is 240VAC 50Hz
24VDC 100 W
DRIVER
Maximum distance from driver to LED
Cross sectional
Area mm 2
5.26 3.31 2.08 1.31
0.82
Distance m
36
21
14
8.0
5.0
Lumenrail low voltage LEDs require a power supply to transform and regulate the voltage. This compact
electronic driver is protected against open circuit, short circuit, overload and overheating.
LUMENRAIL - Technical Specifications
